DRILLING INSERTS Supplier in India
Drilling Inserts are replaceable carbide cutting inserts used in CNC drilling machines and indexable drills to produce accurate holes with high productivity. They offer excellent wear resistance, better chip evacuation, longer tool life, and cost-effective machining for steel, stainless steel, cast iron, aluminium, and other engineering materials.
High-Quality Drilling Inserts for Industrial CNC Drilling Applications
At Metaldur, we are a trusted Drilling Inserts Supplier in India, supplying a wide range of Carbide Drilling Inserts for CNC machine shops, engineering industries, automotive companies, fabrication units, tool rooms, dealers, distributors, and bulk industrial buyers across India. Our products are selected to meet the machining requirements of industries looking for dependable cutting performance, longer tool life, and competitive pricing. We focus on supplying reliable products at affordable and competitive prices to help businesses manage their tooling costs without compromising on machining requirements.
Modern machining industries require drilling tools that deliver high precision, excellent productivity, and consistent performance. Drilling Inserts have become an essential solution because they provide accurate hole-making while reducing tooling costs and machine downtime. Their replaceable design allows only the worn cutting edge to be replaced, rather than the entire drill, making them an economical choice for production machining.
Whether your application involves high-speed drilling, deep-hole drilling, through-hole drilling, or general CNC machining, our Indexable Drilling Inserts help improve machining efficiency while maintaining excellent hole accuracy and surface quality. We supply quality cutting tools with reliable customer support and pan-India delivery. Need reliable milling solutions? Browse our Milling Inserts for face milling, shoulder milling, and high-performance CNC machining.
Find the right Milling Inserts for your machining needs, with a range of options available for CNC milling applications across India.
Milling InsertsWhat Are Drilling Inserts?
Drilling Inserts are replaceable carbide cutting tips used in indexable drilling tools to create accurate holes in metal components. These inserts are mounted inside a drill body and perform the cutting operation while the drill body is reused multiple times. Once the insert becomes worn, it can be replaced quickly without changing the complete tool.
Compared to conventional solid drills, Carbide Drilling Inserts reduce tooling costs, minimize machine downtime, and improve production efficiency. They are available in different geometries, carbide grades, coatings, and sizes to suit various drilling operations and workpiece materials.
Modern CNC machining industries prefer Indexable Drilling Inserts because they offer consistent cutting performance, excellent chip evacuation, improved hole accuracy, and longer service life. Their versatility makes them suitable for both high-volume production and precision engineering applications.
Why Choose Metaldur?
Metaldur is a trusted Drilling Inserts Supplier in India, supplying reliable carbide cutting solutions for CNC machining industries across the country.
Our focus is to supply quality cutting tools that help industries improve machining productivity while reducing tooling costs.
Key Features of Drilling Inserts
Only the insert needs replacement after wear, reducing tooling costs and machine downtime.
Suitable carbide grades can provide good resistance to wear during continuous drilling operations.
Designed to produce accurate hole dimensions with superior dimensional consistency.
Optimized chip breaker designs remove chips effectively, reducing heat build-up and improving drilling stability.
Advanced coatings protect the insert during high-speed machining and increase cutting efficiency.
Proper carbide grades and coatings help maximize insert life under demanding machining conditions.
Strong insert seating minimizes vibration and ensures consistent drilling performance.
Suitable for machining steel, stainless steel, cast iron, aluminium, brass, copper, alloy steel, and many other engineering materials.
Replacing only the insert instead of the complete drill significantly lowers tooling expenses.
Quick indexing reduces production downtime and keeps machines running efficiently.
Benefits of Drilling Inserts
Drilling Inserts support higher cutting speeds and feed rates, allowing manufacturers to complete drilling operations more quickly while maintaining consistent quality.
Because only the worn insert is replaced, businesses save money on tooling compared to replacing carbide drills.
Precision insert geometry delivers smoother hole surfaces, improved dimensional accuracy, and repeatable machining results.
Wear-resistant carbide grades and advanced coatings help extend insert life and reduce frequent replacements.
Quick insert changes minimize production interruptions and improve overall machining efficiency.
Effective chip evacuation reduces clogging, prevents excessive heat, and supports stable drilling performance.
Rigid insert positioning provides consistent cutting action and accurate hole dimensions across long production runs.
Indexable Drilling Inserts are widely used in mass production because they combine durability, precision, and cost-effectiveness.
Applications of Drilling Inserts
Drilling Inserts are designed to deliver accurate hole-making, improved productivity, and reliable machining performance in various CNC drilling operations. Their replaceable design makes them an economical solution for both small and large production environments.
Our Carbide Drilling Inserts are suitable for:
Popular Drilling Insert Types and Codes
Different drilling insert codes are available for different indexable drilling systems. Some commonly searched insert types include:
Industries We Serve
Metaldur supplies Drilling Inserts to industries across India that require dependable CNC drilling solutions.
Our products are widely used in:
Drilling Inserts
Drilling Inserts are replaceable cutting inserts used with indexable drilling tools to produce holes in metal components. They are available in different shapes, grades, and geometries to suit CNC drilling applications and different workpiece materials.
Unlike solid drills, indexable drilling tools allow worn inserts to be replaced without replacing the complete tool. The correct insert should be selected according to the drill type, hole diameter, workpiece material, cutting conditions, and required hole quality.
Types of Drilling Inserts
Drilling inserts are available in different designs for specific drilling requirements. The suitable type depends on the drilling tool and machining application.
Indexable drilling inserts are used with replaceable-insert drills for CNC hole-making operations. They are available in different grades and geometries for machining materials such as steel, stainless steel, cast iron, and non-ferrous metals.
Carbide drilling inserts are commonly used for CNC drilling applications where a hard and wear-resistant cutting material is required. The appropriate grade should be selected according to the workpiece and cutting conditions.
U drill inserts are used with indexable U drills for producing holes in CNC machining. These tools commonly use different insert positions, such as centre and peripheral inserts, depending on the drill design.

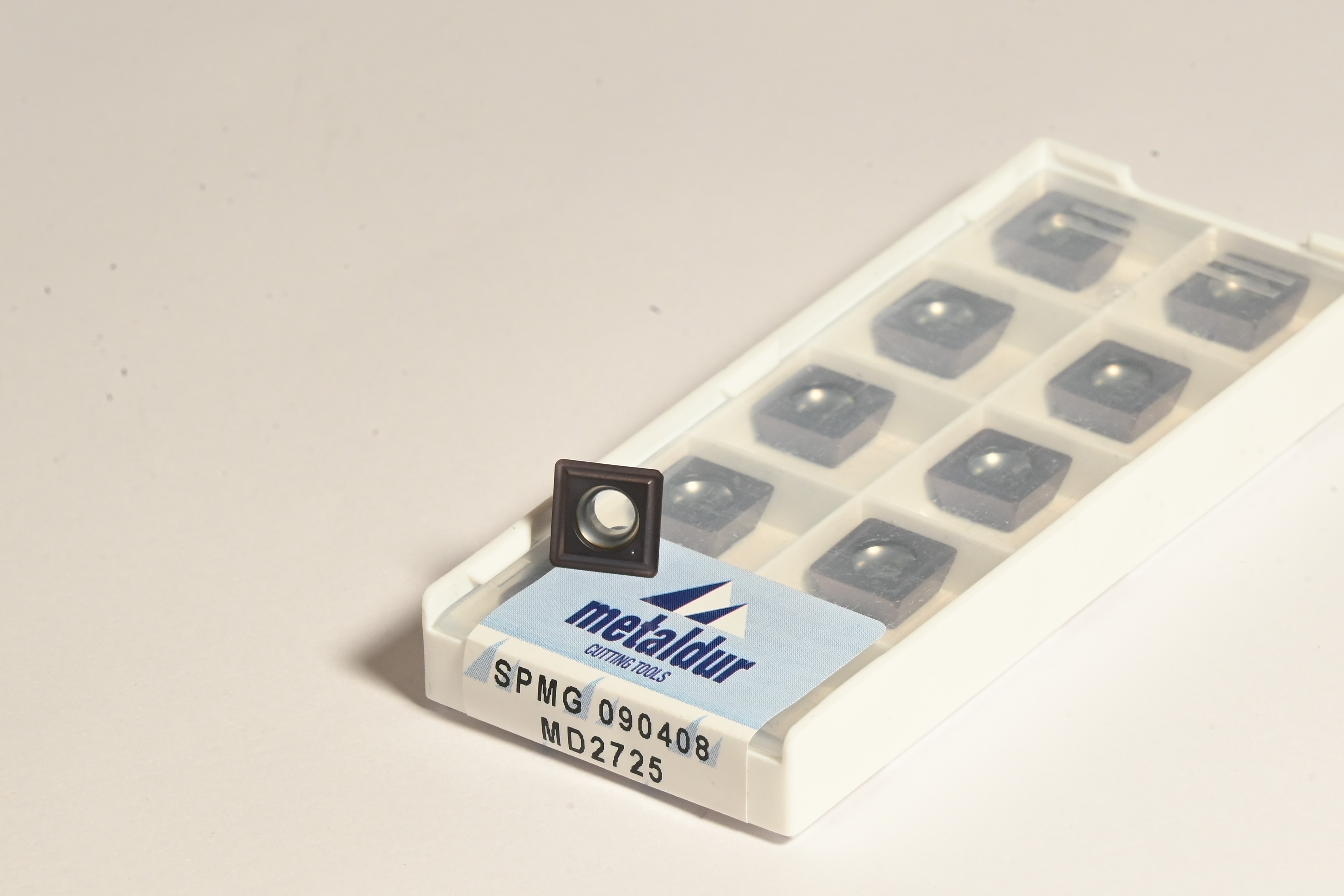

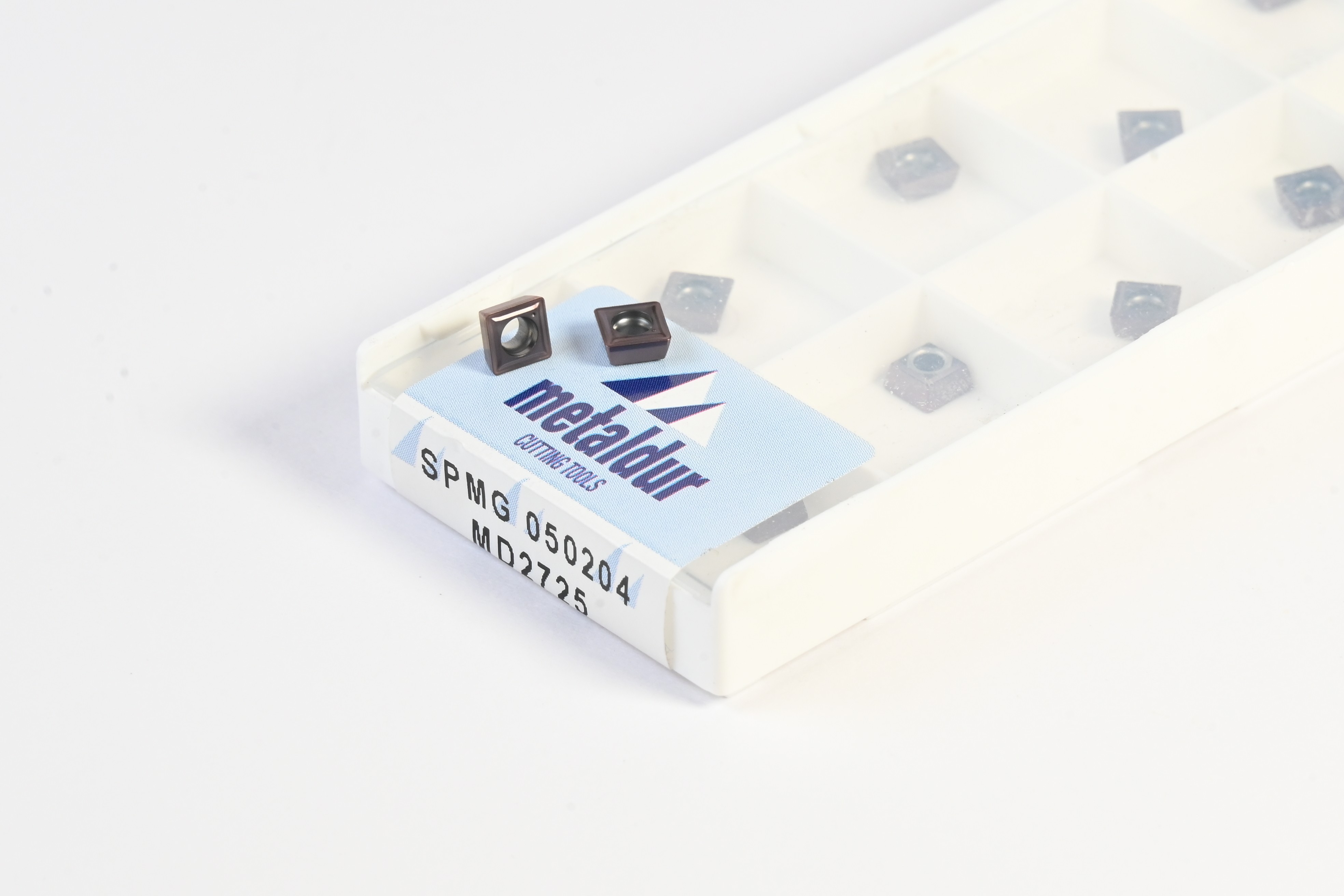

SPMG inserts are commonly used in indexable drilling applications. Their suitability depends on the insert grade, drill body, hole diameter, workpiece material, and machining conditions.
Special insert geometries and grades are available for materials such as aluminium, copper, brass, and other non-ferrous metals. Selection should be based on the material and the manufacturer’s recommended application range.
How to Choose the Right Drilling Inserts
Selecting the correct drilling inserts is important for achieving consistent hole-making results. Consider these factors before purchasing.
Identify the material you need to drill, such as steel, stainless steel, cast iron, aluminium, or other metals. Different materials require different insert grades and cutting geometries.
Check the type of drilling tool in which the insert will be installed. The insert must match the drill body, pocket design, insert shape, and seating arrangement.
The required hole diameter is another important consideration. Make sure the insert and drilling tool are suitable for the required hole size and depth.
Select the insert grade according to the workpiece material and machining conditions. A grade suitable for steel may not be the right choice for aluminium or stainless steel.
Cutting speed and feed influence drilling performance, chip formation, hole quality, and insert wear. Always use the recommended parameters for the specific insert and drill system.
Consider whether you are producing a shallow or deep hole. Hole depth can affect chip evacuation, coolant requirements, and the selection of the drilling tool.
Different insert geometries are designed for different materials and cutting conditions. Check the product specifications before selecting an insert for your application.

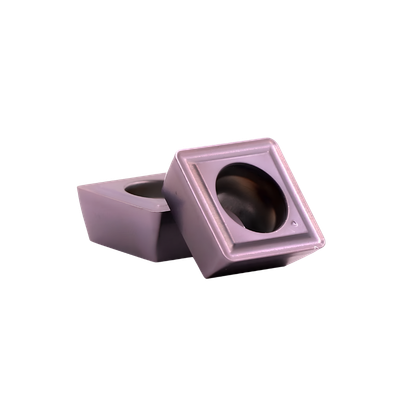

SPMG Carbide Drilling Inserts – CNC Drilling Inserts
Drilling Insert Types and Configurations
Depending on the drill body and machining application, drilling inserts can be available in different configurations. The correct insert type should be selected according to the drill design, workpiece material, and required hole-making operation.
Used in the central cutting area of suitable indexable drilling tools.
Positioned toward the outer cutting area to support hole diameter and cutting performance.
Designed with one usable cutting side for specific drilling applications.
Provide additional usable cutting edges where compatible with the drill design.
Product Specifications
Related Carbide Cutting Inserts
Drilling inserts are one part of the broader range of carbide cutting inserts used in CNC machining. Other insert types are designed for different operations.
Milling inserts are used with indexable milling cutters for face milling, shoulder milling, slotting, profiling, and other milling operations.
Turning inserts are used with CNC lathe tool holders to machine external and internal surfaces on rotating workpieces.
Threading inserts are designed for producing internal and external threads according to the required thread profile and pitch.
Parting and grooving inserts are used to produce narrow grooves, recesses, and cut-off operations on CNC turning machines.
PCD inserts are commonly used for machining selected non-ferrous materials and abrasive workpieces where a suitable diamond cutting edge is required.
CBN inserts are designed for specific machining applications involving hardened steel, cast iron, and other suitable hard materials.
Available Carbide Insert Grades
Selecting the correct carbide grade is important for achieving suitable cutting performance and tool life. The recommended grade depends on the workpiece material and machining conditions.
Commonly used for steel and alloy steel applications.
Suitable for stainless steel and materials requiring a balance of wear resistance and toughness.
Commonly selected for cast iron applications.
Suitable for aluminium and other non-ferrous materials.
Used for heat-resistant alloys and difficult-to-machine materials.
Suitable for hardened materials and applications requiring high wear resistance.
Coated vs Uncoated Drilling Inserts
| Feature | Coated Inserts | Uncoated Inserts |
|---|---|---|
| Wear Resistance | Generally higher | Generally lower |
| Heat Resistance | Generally higher | Depends on application |
| Cutting Speed | Often suitable for higher cutting speeds | Often used at lower or moderate speeds |
| Tool Life | Can provide longer tool life in suitable applications | Depends on material and cutting conditions |
| Best Applications | Often used for steel, stainless steel and other demanding materials | Commonly selected for aluminium and certain non-ferrous applications |
The right choice between coated and uncoated inserts depends on the workpiece material, cutting parameters, machine conditions, and application.
Maintenance Tips of Drilling Inserts
Proper maintenance helps improve the performance and lifespan of Carbide Drilling Inserts.
Clean the insert seat before installing a new insert.
Tighten inserts using the recommended torque.
Replace chipped or worn inserts immediately.
Use the correct cutting speed and feed rate.
Ensure adequate coolant supply during drilling.
Inspect inserts regularly for wear or damage.
Store inserts in a clean, dry place.
Use compatible drill holders and accessories.
Related Products
Metaldur also supplies a complete range of CNC cutting tools, including:
Frequently Asked Questions About Drilling Inserts
Answers to common questions about selecting, using, and sourcing drilling inserts for CNC machining.
What are Drilling Inserts?
Drilling Inserts are replaceable carbide cutting inserts used in indexable drills and CNC drilling tools to produce accurate holes with excellent cutting performance. They reduce tooling costs because only the insert needs to be replaced instead of the complete drill.
What are Drilling Inserts used for?
Drilling Inserts are used for through-hole drilling, blind-hole drilling, U drilling, deep-hole drilling, and general CNC drilling operations. They are widely used in engineering industries and precision machining.
Which materials can be machined using Drilling Inserts?
They are suitable for machining:
- Mild Steel
- Carbon Steel
- Stainless Steel
- Cast Iron
- Alloy Steel
- Aluminium
- Brass
- Copper
- Titanium
- Hardened Steel
The correct insert grade should always be selected for the workpiece material.
What is the TB40G carbide insert suitable for?
TB40G carbide inserts are suitable for general CNC milling applications and can be selected for machining different workpiece materials based on the insert grade, cutting conditions, and tool geometry.
What is an SPMG060204 insert used for?
SPMG060204 inserts are commonly used in indexable drilling applications for producing holes in CNC machining. The suitable grade and cutting conditions depend on the workpiece material and drilling requirements.
Which Drilling Insert is best for stainless steel?
For stainless steel machining, M-grade carbide drilling inserts with wear-resistant coatings are generally recommended because they provide better tool life, improved chip control, and stable cutting performance.
How do I choose the right Drilling Insert?
Consider the following:
- Workpiece material
- Drilling application
- Insert geometry
- Insert grade
- Coating type
- Cutting speed
- Feed rate
- Drill body compatibility
Selecting the correct insert improves productivity and extends tool life.
What are the advantages of Drilling Inserts?
Drilling Inserts provide:
- Longer tool life
- Better hole accuracy
- Higher productivity
- Excellent chip control
- Lower tooling costs
- Reduced downtime
- Easy insert replacement
- Consistent machining performance
Are Drilling Inserts suitable for CNC machines?
Yes. Drilling Inserts are widely used in CNC machining centres, VMCs, HMCs, and production drilling machines because they provide stable machining performance and excellent hole quality.
What insert grades are available?
Common grades include:
- P Grade – Steel
- M Grade – Stainless Steel
- K Grade – Cast Iron
- N Grade – Aluminium & Non-Ferrous Metals
- S Grade – Heat-Resistant Alloys
- H Grade – Hardened Steel
What is the lifespan of a Drilling Insert?
The lifespan depends on the workpiece material, insert grade, cutting speed, feed rate, coolant, and machining conditions. Using the correct machining parameters significantly increases insert life.
Why choose carbide Drilling Inserts instead of solid drills?
Carbide Drilling Inserts reduce tooling costs because only the insert is replaced. They also provide faster machining, longer tool life, and better productivity in high-volume production.
Why choose Metaldur for Drilling Inserts?
Metaldur is a trusted Drilling Inserts Supplier in India, supplying quality carbide drilling inserts to engineering industries, dealers, wholesalers, and CNC machine shops with competitive pricing and reliable customer support.
How much do Carbide Drilling Inserts cost in India?
The price of Carbide Drilling Inserts in India depends on the insert type, size, carbide grade, coating, drill system, application, and order quantity. Bulk orders may have more competitive pricing. Contact Metaldur with your required insert specification, application, and quantity to get the latest product availability and quotation.
Where can I buy Drilling Inserts in India?
You can buy Drilling Inserts in India from Metaldur, a supplier of carbide and indexable drilling inserts for CNC machining applications. Metaldur supplies drilling inserts to CNC machine shops, engineering companies, dealers, wholesalers, and industrial buyers across India. Contact us with your required insert size, grade, drill system, and quantity for product selection and quotation.
Conclusion
Choosing the right Drilling Inserts is important for achieving accurate holes, consistent machining performance, and efficient production. The correct insert grade, geometry, coating, and cutting parameters should be selected according to the workpiece material and drilling application.
Metaldur supplies a range of Carbide Drilling Inserts and Indexable Drilling Inserts for CNC machining, engineering, and industrial applications. We serve dealers, distributors, CNC machine shops, engineering companies, and industrial buyers across India with competitive pricing and dependable product supply.
Whether you require inserts for U drilling, through-hole drilling, blind-hole drilling, or general CNC drilling applications, our team can help you identify suitable products based on your requirements.
